Part B: Multi-step SDC

What happens if we want parallel time steps, but only a single level? The result is multi-step SDC (MSSDC): after each sweep, a step sends its result forward, and the next step picks it up in its next iteration, not in the current one. This is like doing only the smoother of a multigrid method. Parallelization is dead simple and needs no coarsening. Yet, without the stabilization of a coarse level, the iteration counts grow significantly when more steps are computed in parallel. The information can also be picked up immediately, but then the steps wait for each other and the method is not parallel any more.

The controller parameter mssdc_jac chooses between the two: True for the “parallel”, Jacobi-like variant, False for the “serial”, Gauss-Seidel-like one. We compare both with PFASST, with 8 parallel steps.

import os
from pathlib import Path

import matplotlib.pyplot as plt

from pySDC.helpers.stats_helper import get_sorted
from pySDC.helpers.visualization_tools import show_residual_across_simulation
from pySDC.implementations.controller_classes.controller_nonMPI import controller_nonMPI
from pySDC.implementations.problem_classes.HeatEquation_ND_FD import heatNd_unforced
from pySDC.implementations.sweeper_classes.generic_implicit import generic_implicit
from pySDC.implementations.transfer_classes.TransferMesh import mesh_to_mesh

# initialize level parameters
level_params = {'restol': 5e-10, 'dt': 0.125}

# initialize sweeper parameters
sweeper_params = {'quad_type': 'RADAU-RIGHT', 'num_nodes': [3], 'QI': 'LU'}

# initialize problem parameters
problem_params = {
    'nu': 0.1,  # diffusion coefficient
    'freq': 2,  # frequency for the test value
    'bc': 'dirichlet-zero',  # boundary conditions
}

# initialize step parameters
step_params = {'maxiter': 50}

# initialize space transfer parameters
space_transfer_params = {'rorder': 2, 'iorder': 6}

# initialize controller parameters
controller_params = {'logger_level': 40}

# fill description dictionary for easy step instantiation
description = {
    'problem_class': heatNd_unforced,
    'sweeper_class': generic_implicit,
    'sweeper_params': sweeper_params,
    'level_params': level_params,
    'step_params': step_params,
    'space_transfer_class': mesh_to_mesh,
    'space_transfer_params': space_transfer_params,
}

# set up parameters for PFASST run
problem_params['nvars'] = [63, 31]
description['problem_params'] = problem_params.copy()
description_pfasst = description.copy()

# set up parameters for MSSDC run
problem_params['nvars'] = [63]
description['problem_params'] = problem_params.copy()
description_mssdc = description.copy()

controller_params['mssdc_jac'] = True
controller_params_jac = controller_params.copy()
controller_params['mssdc_jac'] = False
controller_params_gs = controller_params.copy()

The multi-step SDC descriptions are copies of the PFASST one, down to the transfer class, which a single level does not need. pySDC warns about that, and the logger_level of 40 silences these (safe) warnings.

Three runs

# set time parameters
t0 = 0.0
Tend = 1.0

# set up list of parallel time-steps to run PFASST/MSSDC with
num_proc = 8

# instantiate controllers
controller_mssdc_jac = controller_nonMPI(
    num_procs=num_proc, controller_params=controller_params_jac, description=description_mssdc
)
controller_mssdc_gs = controller_nonMPI(
    num_procs=num_proc, controller_params=controller_params_gs, description=description_mssdc
)
controller_pfasst = controller_nonMPI(
    num_procs=num_proc, controller_params=controller_params, description=description_pfasst
)

# get initial values on finest level
P = controller_mssdc_jac.MS[0].levels[0].prob
uinit = P.u_exact(t0)

# call main functions to get things done...
uend_pfasst, stats_pfasst = controller_pfasst.run(u0=uinit, t0=t0, Tend=Tend)
uend_mssdc_jac, stats_mssdc_jac = controller_mssdc_jac.run(u0=uinit, t0=t0, Tend=Tend)
uend_mssdc_gs, stats_mssdc_gs = controller_mssdc_gs.run(u0=uinit, t0=t0, Tend=Tend)

# compute exact solution and compare for both runs
uex = P.u_exact(Tend)
err_mssdc_jac = abs(uex - uend_mssdc_jac)
err_mssdc_gs = abs(uex - uend_mssdc_gs)
err_pfasst = abs(uex - uend_pfasst)
diff_jac = abs(uend_mssdc_jac - uend_pfasst)
diff_gs = abs(uend_mssdc_gs - uend_pfasst)
diff_jac_gs = abs(uend_mssdc_gs - uend_mssdc_jac)

print('Error PFASST: %12.8e' % err_pfasst)
print('Error parallel MSSDC: %12.8e' % err_mssdc_jac)
print('Error serial MSSDC: %12.8e' % err_mssdc_gs)
print('Diff PFASST vs. parallel MSSDC: %12.8e' % diff_jac)
print('Diff PFASST vs. serial MSSDC: %12.8e' % diff_gs)
print('Diff parallel vs. serial MSSDC: %12.8e' % diff_jac_gs)

Error PFASST: 2.87344391e-07
Error parallel MSSDC: 2.87650037e-07
Error serial MSSDC: 2.87540078e-07
Diff PFASST vs. parallel MSSDC: 3.05646456e-10
Diff PFASST vs. serial MSSDC: 1.95687268e-10
Diff parallel vs. serial MSSDC: 1.09959188e-10

All three arrive at the same solution. The difference is in how long it takes:

# convert filtered statistics to list of iterations count, sorted by process
iter_counts_pfasst = get_sorted(stats_pfasst, type='niter', sortby='time')
iter_counts_mssdc_jac = get_sorted(stats_mssdc_jac, type='niter', sortby='time')
iter_counts_mssdc_gs = get_sorted(stats_mssdc_gs, type='niter', sortby='time')

# compute and print statistics
for item_pfasst, item_mssdc_jac, item_mssdc_gs in zip(
    iter_counts_pfasst, iter_counts_mssdc_jac, iter_counts_mssdc_gs, strict=True
):
    print(
        'Number of iterations for time %4.2f (PFASST/parMSSDC/serMSSDC): %2i / %2i / %2i'
        % (item_pfasst[0], item_pfasst[1], item_mssdc_jac[1], item_mssdc_gs[1])
    )

Number of iterations for time 0.00 (PFASST/parMSSDC/serMSSDC):  5 /  8 /  8
Number of iterations for time 0.12 (PFASST/parMSSDC/serMSSDC):  5 / 10 /  9
Number of iterations for time 0.25 (PFASST/parMSSDC/serMSSDC):  6 / 11 /  9
Number of iterations for time 0.38 (PFASST/parMSSDC/serMSSDC):  6 / 13 / 10
Number of iterations for time 0.50 (PFASST/parMSSDC/serMSSDC):  7 / 14 / 10
Number of iterations for time 0.62 (PFASST/parMSSDC/serMSSDC):  7 / 15 / 11
Number of iterations for time 0.75 (PFASST/parMSSDC/serMSSDC):  8 / 16 / 11
Number of iterations for time 0.88 (PFASST/parMSSDC/serMSSDC):  8 / 18 / 11

Show code cell source

Hide code cell source

fig, ax = plt.subplots(figsize=(6, 3.5))
for name, counts in [
    ('PFASST', iter_counts_pfasst),
    ('parallel MSSDC', iter_counts_mssdc_jac),
    ('serial MSSDC', iter_counts_mssdc_gs),
]:
    ax.plot(range(len(counts)), [n for _, n in counts], 'o-', label=name)
ax.set_xlabel('process (time step)')
ax.set_ylabel('iterations')
ax.legend(frameon=False)
ax.grid(alpha=0.3)
fig.tight_layout()

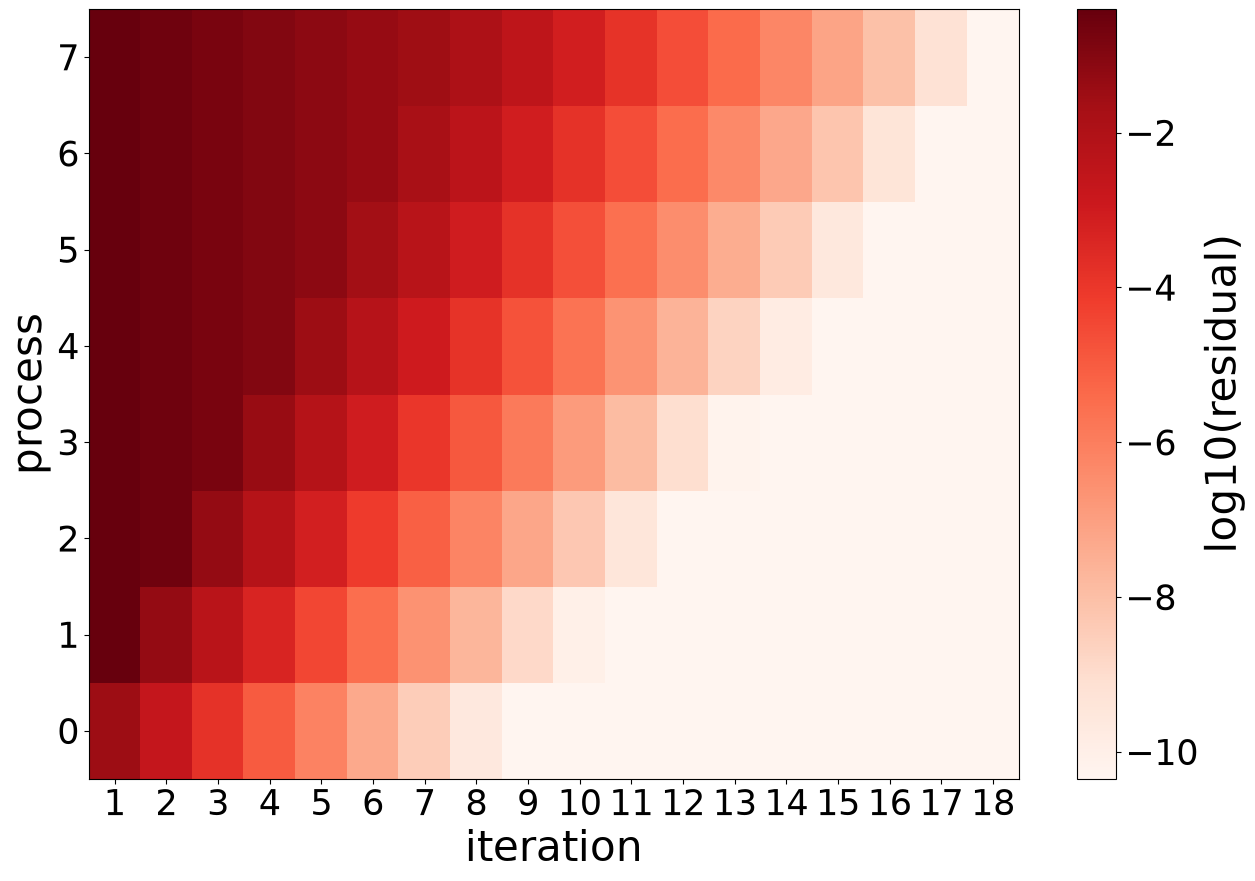

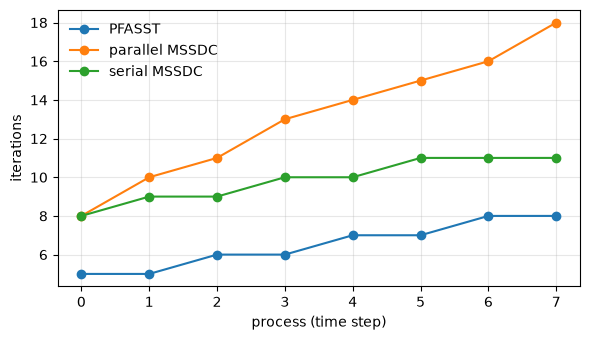

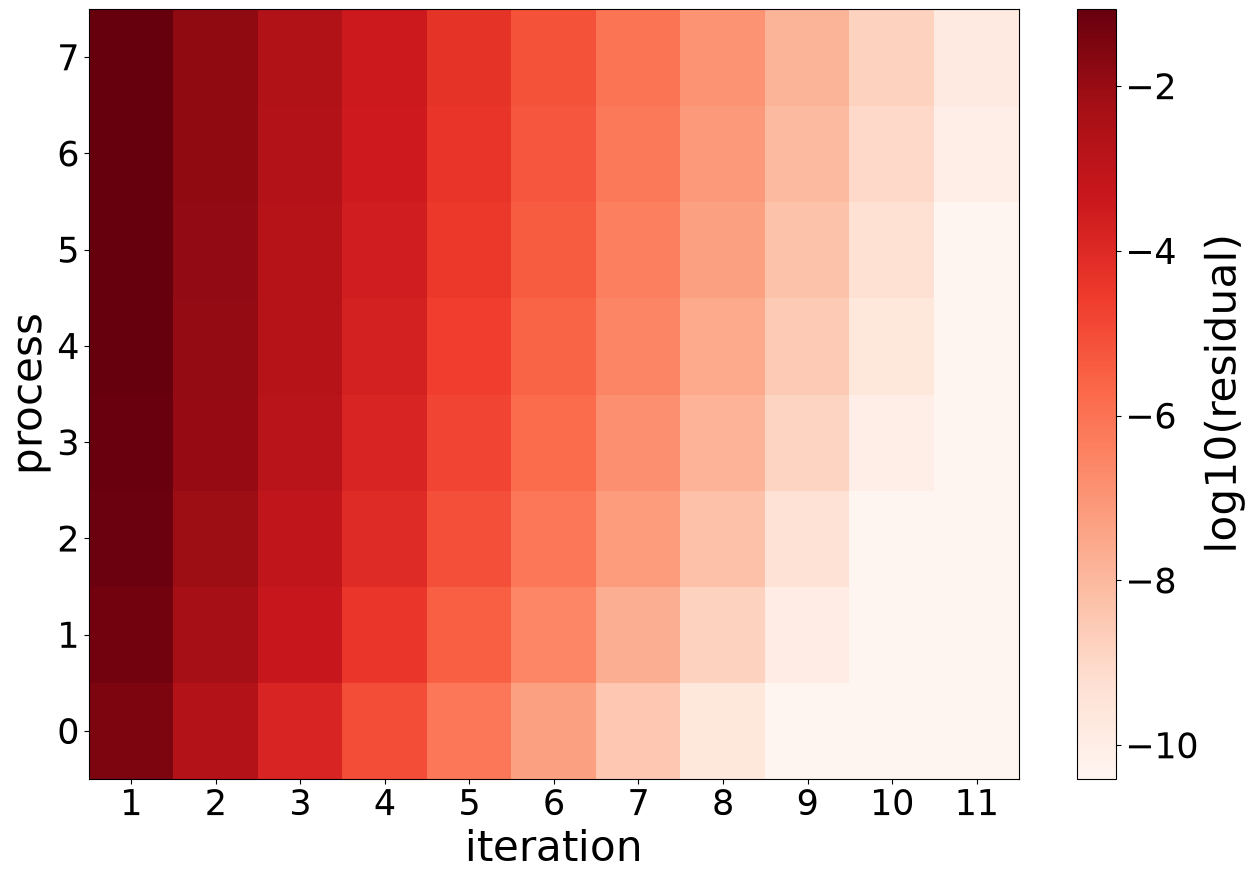

Parallel multi-step SDC needs more and more iterations along the block, up to more than twice as many as PFASST. The serial variant needs fewer, but its steps wait for each other. The residuals, with the helper show_residual_across_simulation from pySDC.helpers.visualization_tools, for the parallel and then the serial variant, over the processes (rows) and iterations (columns):

Path("data").mkdir(parents=True, exist_ok=True)
# call helper routine to produce residual plot
fig_jac = show_residual_across_simulation(stats_mssdc_jac, 'data/step_8_residuals_mssdc_jac.png')
fig_gs = show_residual_across_simulation(stats_mssdc_gs, 'data/step_8_residuals_mssdc_gs.png')

The checks the tests run:

assert os.path.isfile('data/step_8_residuals_mssdc_jac.png')
assert os.path.isfile('data/step_8_residuals_mssdc_gs.png')
assert (
    diff_jac < 3.1e-10
), f"ERROR: difference between PFASST and parallel MSSDC controller is too large, got {diff_jac}"
assert diff_gs < 3.1e-10, f"ERROR: difference between PFASST and serial MSSDC controller is too large, got {diff_gs}"
assert (
    diff_jac_gs < 3.1e-10
), f"ERROR: difference between parallel and serial MSSDC controller is too large, got {diff_jac_gs}"
