Part B: My first PFASST run#

With the multistep multilevel hierarchy of Part A, we are ready for PFASST, starting with the heat equation. One of the most important characteristics of a parallel-in-time method is how it behaves when more time steps are computed in parallel for the same problem, i.e. with dt and Tend fixed. So we run the 16 time steps of \([0, 4]\) with 1, 2, 4, 8 and 16 parallel steps.

import matplotlib.pyplot as plt
import numpy as np

from pySDC.helpers.stats_helper import get_sorted
from pySDC.implementations.controller_classes.controller_nonMPI import controller_nonMPI
from pySDC.implementations.problem_classes.HeatEquation_ND_FD import heatNd_forced
from pySDC.implementations.sweeper_classes.imex_1st_order import imex_1st_order
from pySDC.implementations.transfer_classes.TransferMesh import mesh_to_mesh

# initialize level parameters
level_params = {'restol': 1e-10, 'dt': 0.25}

# initialize sweeper parameters
sweeper_params = {
    'quad_type': 'RADAU-RIGHT',
    'num_nodes': [3],
    'QI': 'LU',  # For the IMEX sweeper, the LU-trick can be activated for the implicit part
}

# initialize problem parameters
problem_params = {
    'nu': 0.1,  # diffusion coefficient
    'freq': 8,  # frequency for the test value
    'nvars': [511, 255],  # number of degrees of freedom for each level
    'bc': 'dirichlet-zero',  # boundary conditions
}

# initialize step parameters
step_params = {'maxiter': 50}

# initialize space transfer parameters
space_transfer_params = {'rorder': 2, 'iorder': 6}

# initialize controller parameters
controller_params = {
    'logger_level': 30,
    'predict_type': 'pfasst_burnin',  # PFASST's coarse-level predictor, see step 4, part C
}

# fill description dictionary for easy step instantiation
description = {
    'problem_class': heatNd_forced,  # pass problem class
    'problem_params': problem_params,  # pass problem parameters
    'sweeper_class': imex_1st_order,  # pass sweeper
    'sweeper_params': sweeper_params,  # pass sweeper parameters
    'level_params': level_params,  # pass level parameters
    'step_params': step_params,  # pass step parameters
    'space_transfer_class': mesh_to_mesh,  # pass spatial transfer class
    'space_transfer_params': space_transfer_params,  # pass parameters for spatial transfer
}

# set time parameters
t0 = 0.0
Tend = 4.0

# set up list of parallel time-steps to run PFASST with
nsteps = int(Tend / level_params['dt'])
num_proc_list = [2**i for i in range(int(np.log2(nsteps) + 1))]
print('numbers of parallel time steps:', num_proc_list)

numbers of parallel time steps: [1, 2, 4, 8, 16]

The runs#

One controller for each number of parallel steps; the rest is what we did in Step 3, for each run: the error, and statistics of the iteration counts.

results = {}
# loop over different number of processes and check results
for num_proc in num_proc_list:
    print('Working with %2i processes...' % num_proc)
    # instantiate controller
    controller = controller_nonMPI(num_procs=num_proc, controller_params=controller_params, description=description)

    # get initial values on finest level
    P = controller.MS[0].levels[0].prob
    uinit = P.u_exact(t0)

    # call main function to get things done...
    uend, stats = controller.run(u0=uinit, t0=t0, Tend=Tend)

    # compute exact solution and compare
    uex = P.u_exact(Tend)
    err = abs(uex - uend)

    # filter statistics by type (number of iterations)
    iter_counts = get_sorted(stats, type='niter', sortby='time')

    # compute and print statistics
    for item in iter_counts:
        print('Number of iterations for time %4.2f: %2i' % item)
    print()
    niters = np.array([item[1] for item in iter_counts])
    print('   Mean number of iterations: %4.2f' % np.mean(niters))
    print('   Range of values for number of iterations: %2i ' % np.ptp(niters))
    print('   Position of max/min number of iterations: %2i -- %2i' % (int(np.argmax(niters)), int(np.argmin(niters))))
    print('   Std and var for number of iterations: %4.2f -- %4.2f' % (float(np.std(niters)), float(np.var(niters))))
    print()
    print()

    results[num_proc] = (err, niters)

Working with  1 processes...

Number of iterations for time 0.00:  5
Number of iterations for time 0.25:  5
Number of iterations for time 0.50:  5
Number of iterations for time 0.75:  5
Number of iterations for time 1.00:  5
Number of iterations for time 1.25:  5
Number of iterations for time 1.50:  5
Number of iterations for time 1.75:  5
Number of iterations for time 2.00:  5
Number of iterations for time 2.25:  5
Number of iterations for time 2.50:  5
Number of iterations for time 2.75:  5
Number of iterations for time 3.00:  4
Number of iterations for time 3.25:  5
Number of iterations for time 3.50:  5
Number of iterations for time 3.75:  5

   Mean number of iterations: 4.94
   Range of values for number of iterations:  1
   Position of max/min number of iterations:  0 -- 12
   Std and var for number of iterations: 0.24 -- 0.06


Working with  2 processes...

Number of iterations for time 0.00:  5
Number of iterations for time 0.25:  5
Number of iterations for time 0.50:  5
Number of iterations for time 0.75:  5
Number of iterations for time 1.00:  5
Number of iterations for time 1.25:  5
Number of iterations for time 1.50:  5
Number of iterations for time 1.75:  5
Number of iterations for time 2.00:  5
Number of iterations for time 2.25:  5
Number of iterations for time 2.50:  5
Number of iterations for time 2.75:  5
Number of iterations for time 3.00:  4
Number of iterations for time 3.25:  4
Number of iterations for time 3.50:  5
Number of iterations for time 3.75:  5

   Mean number of iterations: 4.88
   Range of values for number of iterations:  1
   Position of max/min number of iterations:  0 -- 12
   Std and var for number of iterations: 0.33 -- 0.11


Working with  4 processes...

Number of iterations for time 0.00:  5
Number of iterations for time 0.25:  5
Number of iterations for time 0.50:  5
Number of iterations for time 0.75:  5
Number of iterations for time 1.00:  5
Number of iterations for time 1.25:  5
Number of iterations for time 1.50:  5
Number of iterations for time 1.75:  5
Number of iterations for time 2.00:  5
Number of iterations for time 2.25:  5
Number of iterations for time 2.50:  5
Number of iterations for time 2.75:  5
Number of iterations for time 3.00:  4
Number of iterations for time 3.25:  4
Number of iterations for time 3.50:  4
Number of iterations for time 3.75:  4

   Mean number of iterations: 4.75
   Range of values for number of iterations:  1
   Position of max/min number of iterations:  0 -- 12
   Std and var for number of iterations: 0.43 -- 0.19


Working with  8 processes...

Number of iterations for time 0.00:  5
Number of iterations for time 0.25:  5
Number of iterations for time 0.50:  5
Number of iterations for time 0.75:  5
Number of iterations for time 1.00:  5
Number of iterations for time 1.25:  5
Number of iterations for time 1.50:  5
Number of iterations for time 1.75:  5
Number of iterations for time 2.00:  5
Number of iterations for time 2.25:  5
Number of iterations for time 2.50:  5
Number of iterations for time 2.75:  5
Number of iterations for time 3.00:  5
Number of iterations for time 3.25:  5
Number of iterations for time 3.50:  5
Number of iterations for time 3.75:  5

   Mean number of iterations: 5.00
   Range of values for number of iterations:  0
   Position of max/min number of iterations:  0 --  0
   Std and var for number of iterations: 0.00 -- 0.00


Working with 16 processes...

Number of iterations for time 0.00:  5
Number of iterations for time 0.25:  5
Number of iterations for time 0.50:  5
Number of iterations for time 0.75:  5
Number of iterations for time 1.00:  5
Number of iterations for time 1.25:  5
Number of iterations for time 1.50:  5
Number of iterations for time 1.75:  5
Number of iterations for time 2.00:  5
Number of iterations for time 2.25:  5
Number of iterations for time 2.50:  5
Number of iterations for time 2.75:  5
Number of iterations for time 3.00:  5
Number of iterations for time 3.25:  5
Number of iterations for time 3.50:  5
Number of iterations for time 3.75:  5

   Mean number of iterations: 5.00
   Range of values for number of iterations:  0
   Position of max/min number of iterations:  0 --  0
   Std and var for number of iterations: 0.00 -- 0.00

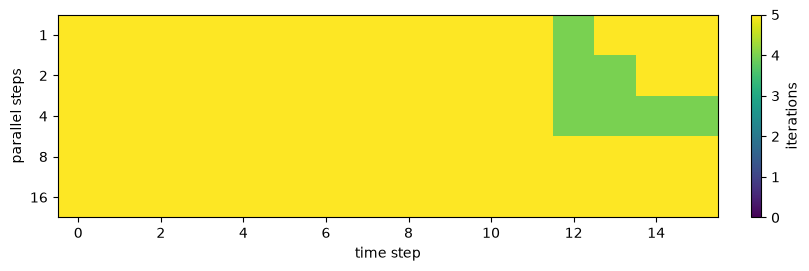

The iteration counts of all runs at a glance, one row per number of parallel steps:

Hide code cell source


fig, ax = plt.subplots(figsize=(8, 2.6), constrained_layout=True)
image = ax.imshow([results[n][1] for n in num_proc_list], cmap='viridis', aspect='auto', vmin=0)
ax.set_yticks(range(len(num_proc_list)))
ax.set_yticklabels(num_proc_list)
ax.set_ylabel('parallel steps')
ax.set_xlabel('time step')
fig.colorbar(image, label='iterations')

<matplotlib.colorbar.Colorbar at 0x7fa7934316a0>
../../_images/374828c4d99357f931e5377371edabee9ff7f07338145f2e0d29ab5d2b54bd60.png

PFASST performs very well here: whether the 16 steps are computed one after another or all at once, they need about 5 iterations each.

Important things to note

  • In the IMEX sweeper, QI = 'LU' activates the LU-trick for the implicit part. For stiff parabolic problems with Gauss-Radau nodes, this is usually a very good idea.

  • As usual for MLSDC and PFASST, success depends heavily on the parameters. A more complicated problem, a more or less stiff one, a different order of the spatial interpolation, etc. can give completely different results. Part C has an example.

The checks the tests run, for every number of parallel steps:

for err, niters in results.values():
    assert err < 1.3505e-04, f"ERROR: error is too high, got {err}"
    assert np.ptp(niters) <= 1, f"ERROR: range of number of iterations is too high, got {np.ptp(niters)}"
    assert np.mean(niters) <= 5.0, f"ERROR: mean number of iterations is too high, got {np.mean(niters)}"
