Examples of the pySDC paper in ACM TOMS

This project holds the numerical examples of the paper that introduced pySDC, Algorithm 997: pySDC—Prototyping Spectral Deferred Corrections, ACM Transactions on Mathematical Software 45(3), 2019. There are two of them: a comparison of SDC variants for the Allen-Cahn equation, and space-time parallel runs of the heat equation with PETSc.

SDC variants for the Allen-Cahn equation

AllenCahn_contracting_circle.py solves the 2D Allen-Cahn equation on 128x128 points, with a circle of radius 0.25 that shrinks and vanishes, until \(T=0.032\) with \(\Delta t = 10^{-3}\). It runs the same setup with five ways to split the equation, all from AllenCahn_2D_FD:

• fully-implicit: the whole right-hand side implicit, solved with Newton’s method;

• semi-implicit and semi-implicit_v2: IMEX SDC, with two different splittings into an implicit and an explicit part;

• multi-implicit and multi-implicit_v2: multi-implicit SDC, which treats two parts of the right-hand side implicitly, each with its own solver, again with two different splittings.

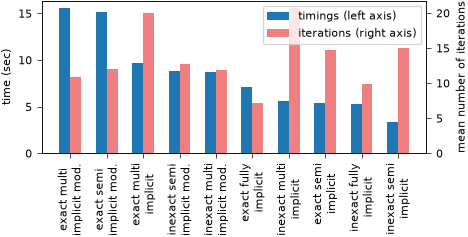

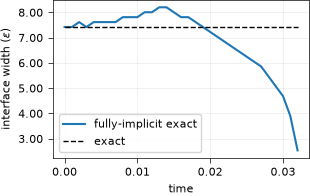

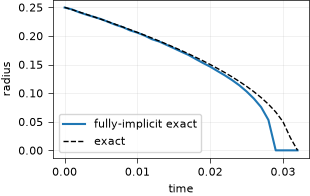

Each variant runs with exact inner solves and with inexact ones (a single Newton step, or at most 10 iterations of the linear solver). The plots show the time to solution and the mean number of iterations of each variant, and for the exact fully implicit one the radius of the circle against the exact radius, and the width of the interface against its initial width:

Space-time parallel runs with PETSc

pySDC_with_PETSc.py solves the forced 2D heat equation with PETSc data types and solvers, and runs MLSDC or PFASST with controller_MPI. It splits MPI.COMM_WORLD into communicators in space and in time: the number of ranks in space is the first command-line argument, and the remaining factor of the ranks goes to time. The runs for the paper were made on JURECA, with the JUBE files jube_pySDC_with_PETSc.xml and run_pySDC_with_PETSc.tmpl; README_JURECA.txt explains the setup there. Their results are in data/result_*_NEW.dat, and visualize_pySDC_with_PETSc.py turns them into the runtimes on up to 24 cores, split between space and time, and the runtimes of MLSDC and PFASST against the number of cores:

Tests

The tests run the five Allen-Cahn variants, with exact and with inexact solves, and plot them, and plot the stored results of the PETSc runs. The plots above are made by the CI: the Allen-Cahn ones from the current code, the PETSc ones from the stored results.

Papers

The results of this project are published in:

• Robert Speck, Algorithm 997: pySDC—Prototyping Spectral Deferred Corrections, ACM Transactions on Mathematical Software 45(3), 1–23, 2019, https://doi.org/10.1145/3310410

  BibTeX

  @article{speck2019algorithm,
      author = {Speck, Robert},
      title = {Algorithm 997: pySDC—Prototyping Spectral Deferred Corrections},
      journal = {ACM Transactions on Mathematical Software},
      volume = {45},
      number = {3},
      pages = {1--23},
      year = {2019},
      doi = {10.1145/3310410}
  }
